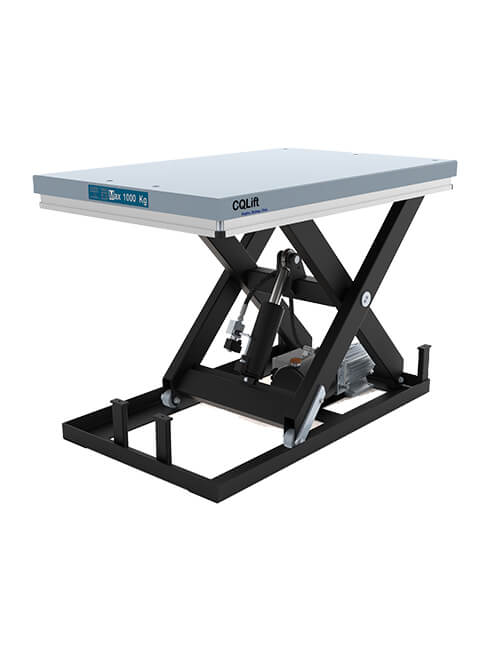

Hydraulic Lift Table - HD10

Description Other specifications Detailed freight SpecificationsUniform Static Capacity (kg.):  1000 Filters Sort results Reset Apply SKUProduct Description (mm)PriceQuantity CartHD10Platform Size: 1300×820, Min. Height: 205, Max. Height: 1000, Base Size: 1220×680$1,500.00 Max: Min: 1Step: 1ADDHD1002Platform Size: 1600×1000, Min. Height: 205, Max. Height: 1000, Base Size: 1220×800$1,550.00 Max: Min: 1Step: 1ADDHD1003Platform Size: 1700×1000, Min. Height: 230, Max. Height: 1300, Base Size: 1600×800$1,600.00 Max: Min: 1Step: 1ADDHD1004Platform Size: 1700×1500, Min. Height: 230, Max. Height: 1300, Base Size: 1600×800$1,650.00 Max: Min: 1Step: 1ADDHD1005Platform Size: 1700× 1850, Min. Height: 230, Max. Height: 1300, Base Size: 1600×1500$1,650.00 Max: Min: 1Step: 1ADDHD1006Platform Size: 2000×850, Min. Height: 230, Max. Height: 1300, Base Size: 1795×680$1,750.00 Max: Min: 1Step: 1ADDHD1007Platform Size: 2000×1000, Min. Height: 230, Max. Height: 1300, Base Size: 1795×800$1,800.00 Max: Min: 1Step: 1ADDHD1008Platform Size: 2000×1700, Min. Height: 230, Max. Height: 1300, Base Size: 1795×1500$1,850.00 Max: Min: 1Step: 1ADD  ConfigurationVoltage/Phase: 460/3Hertz: 60Hydraulic Component Rating (psi): 3000Cord Length (in.): 96Push Button Hand Control: 24V ACRise/Fall Time (sec) : 20-25  Durability and QualityMultiple models and standard options can be easily customized to meet your specific needs.The scissor arm is made of steel plate to provide overall stability.Reinforced cargo deck minimizes platform deflection, maximizes load stability, and extends platform deck life.The standard hydraulic power unit and the factory-connected control system allow users to use it safely only by connecting to the power supply.Extremely low lowered height allows for greater loading and unloading flexibility and increases overall ergonomic reach.  Maintenance and WarrantyCQLift offers a 2-year warranty on all components to guarantee you have purchased a reliable lift.Configuring maintenance devices enables maintenance personnel to be safe and efficient during inspections and routine maintenance.Maintenance-free bearings at pivot points do not require lubrication.Efficient and easy to maintain hydraulic power unit.Double braided hydraulic hose resists scuffs, scuffs and leaks.High-strength rollers are easy to replace, minimizing downtime.  Safety performanceThe minimum structural safety factor of 1.5 times makes our lifting platform a safe and efficient work guarantee for users.The flow control valve regulates the flow of fluid to control the speed of lift as it descends.Conforms to recognized standards:ANSI MH29.1 – Safety Requirements for Industrial Scissors Lifts.EU EN1570 – Safety requirements for industrial scissor lifts. ASTM – A36 – Standard for Structural Steel ANSI Z535 – Safety Labeling Requirements AWS D.1 – Welding Standard  Custom OptionsCustomize your lift & lift platform Specific platform sizes, logical configurations, different movements, high frequency or automation – when you need a lift to perform a specific function, we have the materials, accessories and unique design techniques to provide a one-of-a-kind solution for your application requirements lifting platform solutions.
