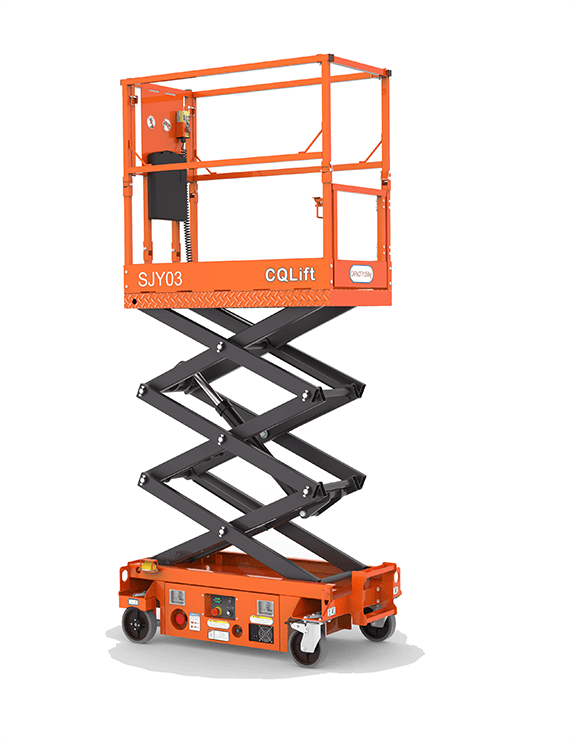

DescriptionPush Around Scissor Lift FeatureThe whole machine is equipped with multiple safety protection functions, allowing operators to easily and efficiently solve the problem of working at heights.Bubble spirit level.Non-marking tires.Automatic charging.Deep cycle battery.Low voltage protection.Emergency descent manual valve.Raise the automatic brake.Sound and light alarm prompt during lifting and lowering. Documentatio Push Around Scissor Lift Sell Sheet Push Around Scissor Lift Size Mode SJY30 Size Max.Working Height 5.1 m Max.Platform Height 3.1 m Overall Length 1.35 m Overall Width 0.76 m Overall Height(Rails Up) 1.76 m Overall Height(Rails Down) / Platform Size (L×W) 1.25 m × 0.70 m Platform Extension Size / Ground Clearance(Stowed/Raised) 0.06 m Wheelbase 1.15 m Turning Radius(Inside/Outside) / Tyres φ200×50 mm Performance S.W.L 250 kg / 550 lb Max. Occupants 1 Max. Working Slope 1° Up/Down Speed 36 / 25 sec Weight Machine Weight 460 kg Power Hydraulic Tank 3L/ 8Pt Battery(Lead-acid Battery) 12 V / 85 Ah Charger 12 V / 15 A Lifting Motor 12V / 0.8 Kw Standards ANSI A92.3-2006, EN280-2001, OSHA Manufacturers Warranty Length 1 yr CQLift specializes in producing a variety of aerial work platforms, small boom lifts, mini scissor lift, vertical lifting platforms, etc., And a variety of material handling products equipment that can replace rolling ladders, such as order picker machine series, scissor lift table, and many more.
