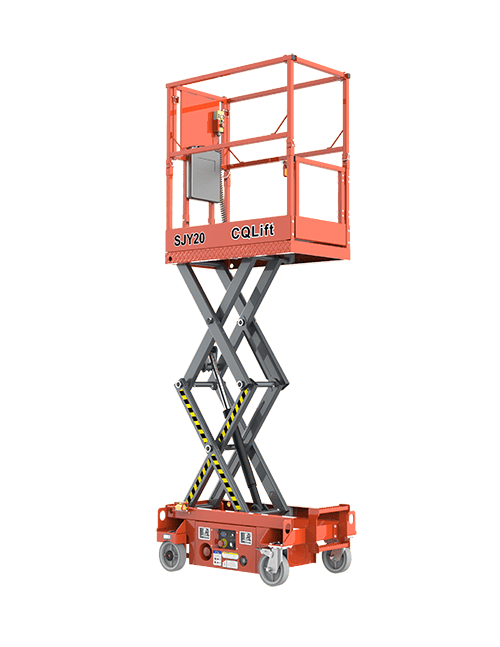

DescriptionPush Around Scissor Lift FeatureThe whole machine is equipped with multiple safety protection functions, allowing operators to easily and efficiently solve the problem of working at heights.Bubble spirit level.Non-marking tires.Automatic charging.Deep cycle battery.Low voltage protection.Emergency descent manual valve.Raise the automatic brake.Sound and light alarm prompt during lifting and lowering. Mode SJY20 Size Max.Working Height 4.0 m Max.Platform Height 2.0 m Overall Length 1.15 m Overall Width 0.70 m Overall Height(Rails Up) 1.71 m Overall Height(Rails Down) 1.21 m Platform Size (L×W) 1.05 m × 0.60 m Platform Extension Size / Ground Clearance(Stowed/Raised) 0.06 m Wheelbase 0.9 m Turning Radius(Inside/Outside) / Tyres φ200×50 mm Performance S.W.L 250 kg / 550 lb Max. Occupants 1 Max. Working Slope 1° Up/Down Speed 36 / 25 sec Weight Machine Weight 370 kg Power Hydraulic Tank 3L/ 8Pt Battery(Lead-acid Battery) 12 V / 85 Ah Charger 12 V / 15 A Lifting Motor 12V / 0.8 Kw Standards ANSI A92.3-2006, EN280-2001, OSHA Manufacturers Warranty Length 1 yr
