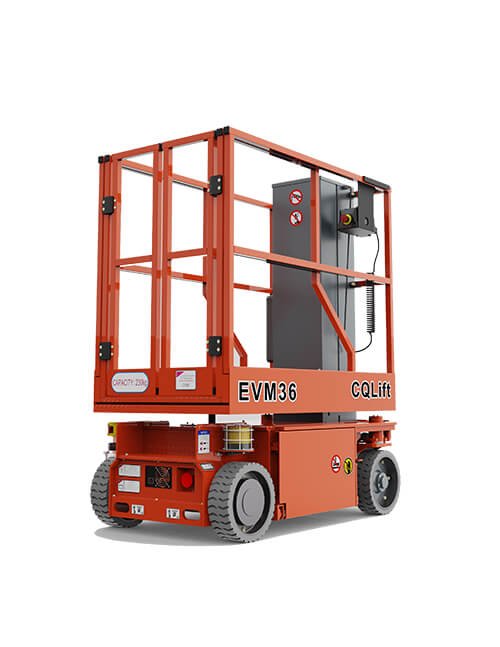

DescriptionStandard Features:Platform:Automatic closing platform double doorsFull proportional drive joystick control with integral thumb steer switchProportional lift/lower speed controlJoystick enable for lift and driveLanyard attach points Power & Transmission:2 x 12V 100 A/hr deep cycle batteriesProgrammable “Personality” settingsOn-board self-diagnostic testing20 Amp automatic battery chargerDual motor electric wheel driveDual wheel automatic brakesEmergency brake release Functional Equipment & Accessories:Pothole protection systemBattery condition indicatorHour meterManual descentNon-marking solid tyresSlope alarm and lightAll motion alarm Product parameter Model EVM36 Size Working Height 5.60 m Platform Height – Elevated 3.60 m Platform Height – Lowered 0.52 m Stowed Height 1.66 m Platform Size (W x L) 1.30 m x 0.75 m Platform Extension Size 0.50 m Overall Length 1.36 m Overall Width 0.76 m Wheelbase 1.05 m Ground Clearance (Stowed) 0.65 m Ground Clearance (Raised) 0.015 m Turning Radius(Inside/Outside) 0.06 m Tyres Φ305 × 100mm Performance Platform Capacity 230 kg Platform Capacity On Extension 113 kg Max.Occupants(Inside/Outside) 1 Gradeability 25 % Maximum Working Slope X-1.5°/ Y-3° Travel Speed(Stowed) 4.5 km/h Travel Speed(Raised) 0.4 km/h Up/Down Speed 25- 30 sec Weight Weight 820 kg Power Battery 2 x 12 V / 100 Ah Integrated Charger 20 Amp Drive Motor 2 x 0.4 KW Lifting Motor 2.2 KW Serve:1 year free guaranteeStandards: ANSI A92.3-2006, EN280-2001, OSHA
