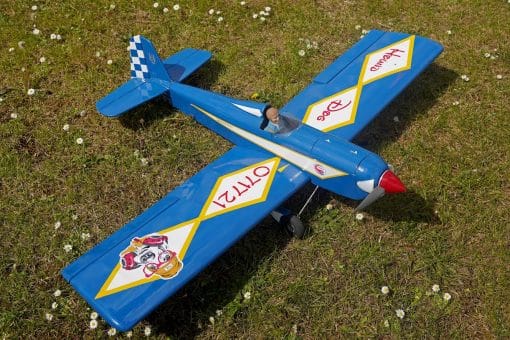

Hound Dog is a sports aerobatic model designed during that long flying desert of the lockdowns in 2020 & 2021. Hound Dog is a very nice model to fly. It is rock steady in flight until you want to do something, then it does it with no fuss or twitchiness. Name: Hound Dog Model type: Sport aerobatic Designed by: Peter Miller Wingspan: 1270 mm (50”) Wing area: 0.32 sq.m. (500 sq.in.) Weight: 1.45 kg (3 lb 3 oz) Wing loading: 15 oz/sq.ft. Functions (servos): Ailerons (2), Rudder (1), Elevator (1), Throttle (ESC) Motor: 4-Max PO-3541-1070 ESC: 40A Prop: 10 x 6E, 11 x 5.5E Battery: 3S 3000mAh LiPo Plan code: RC2243 Magazine: Featured in RCM&E October 2022 CONTROL THROWS Ailerons & Elevator: full rate /- 5/8”, low rate /- 3/8” Rudder: full rate /- 1”, low What’s in a Laser or CNC Cut Wood Pack? – A CNC or laser-cut wood pack contains most, if not all, of the intricately shaped parts shown on the plan, which would be difficult or time-consuming to cut out by hand. It does not contain any sheet or strip wood, which you will need to buy separately. Alternatively, you can purchase an Additional Wood Pack, if available. Our Laser or CNC Cut Wood Packs only contain balsa, ply and lite ply and do not include other materials that may be required to complete the model, such as hardwoods, metals and GRP sheets. Check out the Video showing a pictorial. Video is provided by Mortons Media the publishers of RCM&E Magazine available from: https://www.modelflying.co.uk
